Name: BB15-2K-K Sprag Cam Clutch Bearing 15mm Bore 35mm OD
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BB 15-2K-k
Price: 8.00 USD
Availability: InStock

خانه محصولات بلبرینگ کلاچ یک طرفه

BB15-2K-K Sprag Cam Clutch Bearing 15mm Bore 35mm OD

جزئیات محصول:

محل منبع:	جیانگسو ، چین
نام تجاری:	SUMA or OEM
شماره مدل:	BB 15-2K-k

پرداخت:

مقدار حداقل تعداد سفارش:	10
قیمت:	$6-10

مخاطب

توضیحات محصول جزئیات

نوع:	اسپراگ	رتبه دقیق:	P0
نوع مهر و موم:	مهر و موم شده	مادی:	GCR15
قطر بیرونی:	35 میلی متر	اندازه سوراخ:	15 میلی متر
ظرفیت گشتاور:	29 نانومتر	حداکثر بیش از حد (درونی):	3600 r/min
حداکثر بیش از حد (بیرونی):	2000 r/min	گشتاور:	0.01 n*m
وزن:	50 N	بار تحمل (CR):	5950 n
بار تحمل (COR):	3230 n	دمای عملیاتی:	-30 تا +100 درجه سانتیگراد
تحمل قطر شافت:	15-0.008-0.028 میلی متر
برجسته کردن:	15mm sprag clutch bearing,one way clutch bearing 35mm OD,BB15-2K-K cam clutch bearing , one way clutch bearing 35mm OD , BB15-2K-K cam clutch bearing

BB 15-2K-K Cam Clutch Bearing All Type of Bearing

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag
Precision Rating	P0
Seals Type	sealed
Material	GCr15
Outer diameter	35 mm
Bore size	15 mm
Torque Capacity	29 Nm
Package	single box or as your requirements
Port	Shanghai, Ningbo
Delivery time	10-15 Days
OEM	Accept

Technical Data

Item	BB15 2K-K
Material	GCr15
Outer dia.	35 mm
Bore size	15 mm
Torque Capacity	29 Nm
Max. Overrunning(inner race)	3600 r/min
Max. Overrunning(outer race)	2000 r/min

Key Features

BB series Cam Clutch is designed for press fit installation
BB-2K-K series has a keyway on both the inner and outer race
Dust seal protection against particles of 0.25mm and over
Special lip seals for effective protection against any dust (BB-2GD series)
Operating temperature range: -30°C to +100°C
Arrow on inner race indicates direction of engagement
Pre-greased before delivery (no additional lubrication needed)

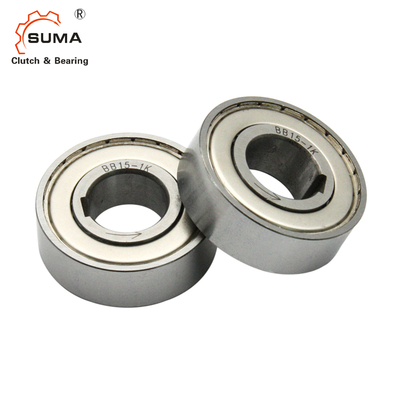

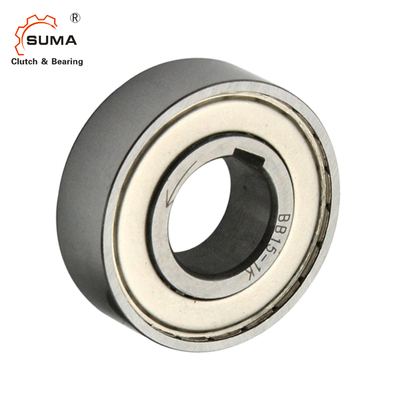

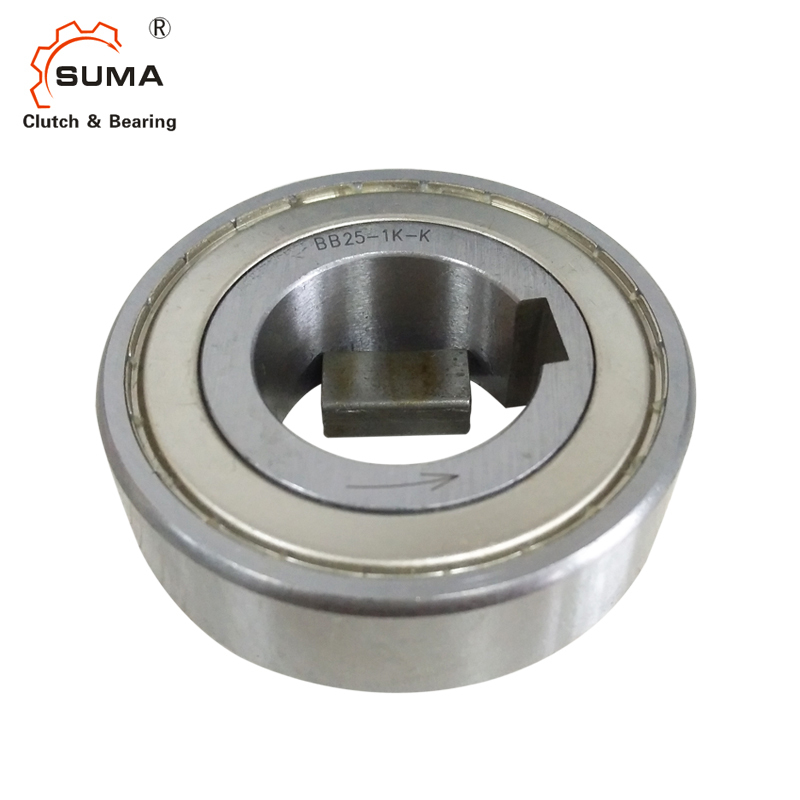

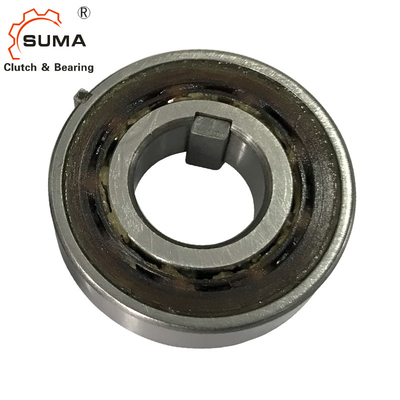

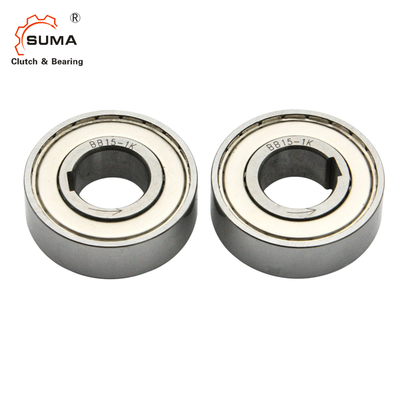

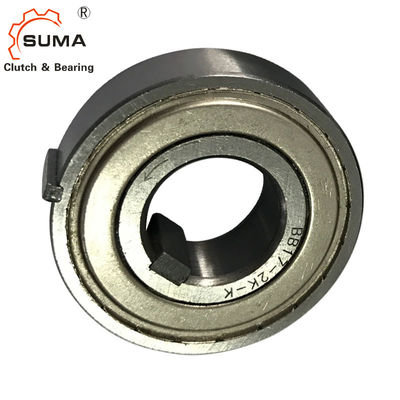

Product Images

Dimensions and Capacities

All dimensions in mm

Model	Torque Capacity (N*m)	Max. Overrunning (r/min)	Drag Torque (N*m)	Weight (N)
BB15	29	3600 (inner) 2000 (outer)	0.01	50

Tolerance Specifications

Model	Shaft Dia. (mm)	Housing Dia. (mm)
BB15-2K-K	15-0.008-0.028	35-0.018-0.002

Lubrication Guidelines

Grease is pre-applied before delivery
For oil lubrication, maintain continuous internal oil supply
Do not use greases or lubricants with EP additives

Certifications

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) specializes in producing various cam clutches, one way bearings, and overrunning clutches with high technology.
