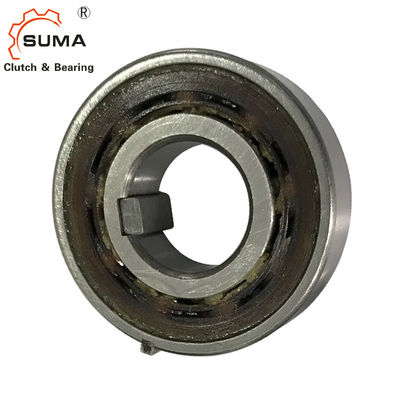

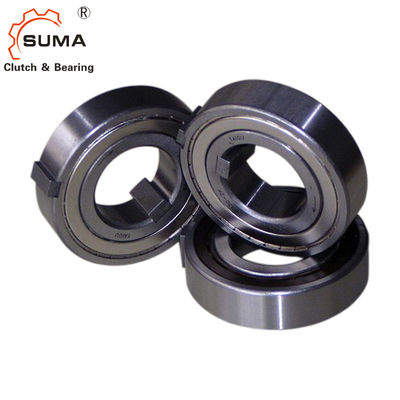

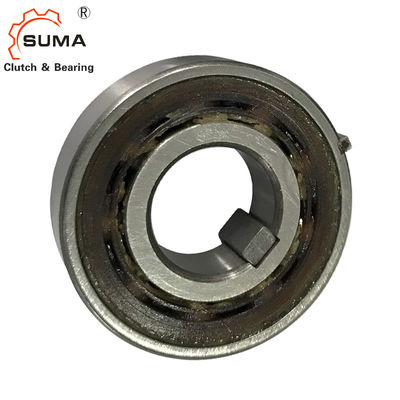

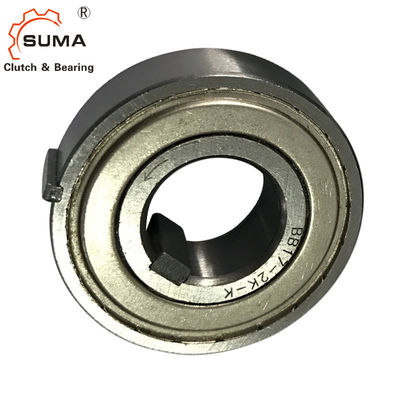

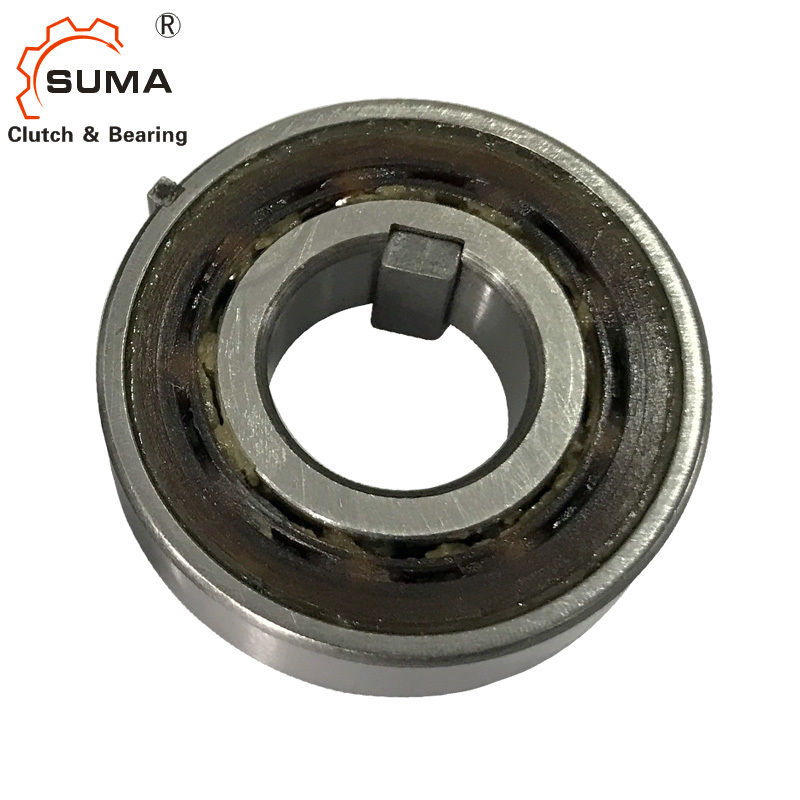

Name: BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BB 30-2K-k
Price: 567.60 USD
Availability: InStock

خانه محصولات بلبرینگ کلاچ یک طرفه

BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD

جزئیات محصول:

محل منبع:	جیانگسو ، چین
نام تجاری:	SUMA or OEM
شماره مدل:	BB 30-2K-k

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

رتبه دقیق:	صفحه	نوع مهر و موم:	مهر و موم شده
اندازه سوراخ:	30 میلی متر	قطر خارج:	62 میلی متر
مادی:	GCR15	حوزه گشتاور:	140 نیوتن متر
حداکثر سرعت بیش از حد:	2000 r/min (داخلی) ، 1100 r/min (بیرونی)	گشتاور:	0.03 n*m
دمای عملیاتی:	-30 تا +100 درجه سانتیگراد	وزن:	56.6 n
بارهای تحمل:	CR: 11900 N ، COR: 7900 N	قطر شفت:	30+0.028+0.015 میلی متر
قطر مسکن:	62-0.022-0.003 میلی متر	ابعاد کلیدی:	8x5x16 میلی متر (داخلی) ، 6x4x16 میلی متر (بیرونی)
روانکاری:	روغن کاری از قبل چرب شده ، روغن سازگار
برجسته کردن:	BB 30-2K-K one way bearing 30mm bore,sprag type one way clutch bearing 62mm OD,one way bearing with 30mm bore , sprag type one way clutch bearing 62mm OD , one way bearing with 30mm bore

BB 30-2K-K Sprag Type Bearings Cam Clutch One Way Bearing

Product Specifications

Item	BB-2K-K
Material	GCr15
Outer dia.	62 mm
Bore size	30 mm
Torque Capacity	140 Nm
Max. Overrunning(inner race)	2000 r/min
Max. Overrunning(outer race)	1100 r/min
Port	Shanghai; Ningbo
Delivery time	10-15 days

Product Features

BB series Cam Clutch is designed for press fit installation.
BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race.
BB-2K-K series has a keyway on both the inner and outer race.
Correct interference dimensions at the shaft and housing must be maintained.
Refer to the table for tolerance of the shaft and housing for each series.
BB, BB-1K and BB-2K Clutches have dust seal protection against particles of 0.25mm and over.
The arrow on the inner race shows the direction of inner race engaging.
To install the clutch, use a press tool of appropriate diameter.
Do not hammer or apply other shock to the clutch.
Ensure housing has enough strength for press fitting installation.
Operating temperature range: -30°C to +100°C.

Dimensions and Capacities

Dimensions in mm

Model	Torque Capacity	Max. Overrunning Inner Race	Max. Overrunning Outer Race	Drag Torque (N*m)	A	B	C	D	r	Weight (N)	Bearing Loads
BB15	29	3600	2000	0.01	11	16	35	15	0.6	50	70
BB17	43	3500	1900	0.01	12	17	40	17	0.6	80	100
BB20	61	3000	1600	0.014	14	19	47	20	1	120	150
BB25	78	2500	1400	0.017	15	20	52	25	1	150	200
BB30	140	2000	1100	0.03	16	21	62	30	1	230	280
BB35	173	1800	1000	0.034	17	22	72	35	1.1	320	410
BB40	260	1800	900	0.04	22	27	80	40	1.1	400	600

Note: Model No. marked on the inner race is only "K" for both "1K" and "2K". (Example: the mark "BB25-K" for both BB25-1K and BB25-2K)

Tolerance for Shaft and Housing

Standard Models

Model	Shaft Dia.	Housing Dia.
BB15	15+0.023+0.012	35-0.012-0.028
BB17	17+0.023+0.012	40-0.012-0.028
BB20	20+0.028+0.015	47-0.012-0.028
BB25	25+0.028+0.015	52-0.014-0.033
BB30	30+0.028+0.015	62-0.014-0.033
BB35	35+0.033+0.017	72-0.014-0.033
BB40	40+0.033+0.017	80-0.014-0.033

1K-K Series

Model	Shaft Dia.	Housing Dia.
BB15-1K-K	15-0.008-0.028	35-0.012-0.028
BB17-1K-K	17-0.008-0.028	40-0.012-0.028
BB20-1K-K	20-0.010-0.031	47-0.012-0.028
BB25-1K-K	25-0.010-0.031	52-0.014-0.033
BB30-1K-K	30-0.010-0.031	62-0.014-0.033
BB35-1K-K	35-0.012-0.037	72-0.014-0.033
BB40-1K-K	40-0.012-0.037	80-0.014-0.033

2K-K Series

Model	Shaft Dia.	Housing Dia.
BB15-2K-K	15-0.008-0.028	35-0.018-0.002
BB17-2K-K	17-0.008-0.028	40-0.018-0.002
BB20-2K-K	20-0.010-0.031	47-0.022-0.003
BB25-2K-K	25-0.010-0.031	52-0.022-0.003
BB30-2K-K	30-0.010-0.031	62-0.022-0.003
BB35-2K-K	35-0.012-0.037	72-0.025-0.006
BB40-2K-K	40-0.012-0.037	80-0.025-0.006

Dimensions of Keys and Keyways

Model	b2js10	t1	t2	Inner race Key b×h×length	Outer race Key b'× h' ×length
BB15-1K-K	5.0	1.9	1.2	--	--
BB15-2K-K	2.0	0.6	5x3x11	2x2x11
BB17-1K-K	5.0	1.9	1.2	--	--
BB17-2K-K	2.0	1	5x3x12	2x2x12
BB20-1K-K	6.0	2.5	1.6	--	--
BB20-2K-K	3.0	1.5	6x4x14	3x3x14
BB25-1K-K	8.0	3.6	1.5	--	--
BB25-2K-K	6.0	2	8x5x15	6x4x15
BB30-1K-K	8.0	3.1	2.0	--	--
BB30-2K-K	6.0	2	8x5x16	6x4x16
BB35-1K-K	10.0	3.7	2.4	--	--
BB35-2K-K	8.0	2.5	10x6x17	8x5x17
BB40-1K-K	12.0	5.0	3.3	--	--
BB40-2K-K	10.0	3	12x8x22	10x6x22

Note: The dimension of t2 for BB25-1K-K, BB25-2K-K and BB25-2GD 1K-K is 0.5 mm shallow compared to DIN 6885. 3. Process the keyway on the shaft 0.5 mm deeply to use DIN standard key. All other models are dimensionally interchangeable with competitors.

Lubrication

Since grease is already applied before delivery, there is no need to apply grease before use.
If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
Do not use greases or lubricants with EP additives.
